Linear Bearing
Linear Ball Bearing LME LM..
Linear ball bearing is a linear motion system used for linear travel in conjunction with a cylindrical shaft. Due to the point-contact of the bearing ball and the bearing jacket, the steel ball rolls with minimal frictional resistance, so the linear bearing has low friction and is relatively stable, does not change with the bearing speed, and can obtain smooth linear motion with high sensitivity and high precision.

轴承型号

基本尺寸(mm)

列数

额定载荷(N)

重量(g)

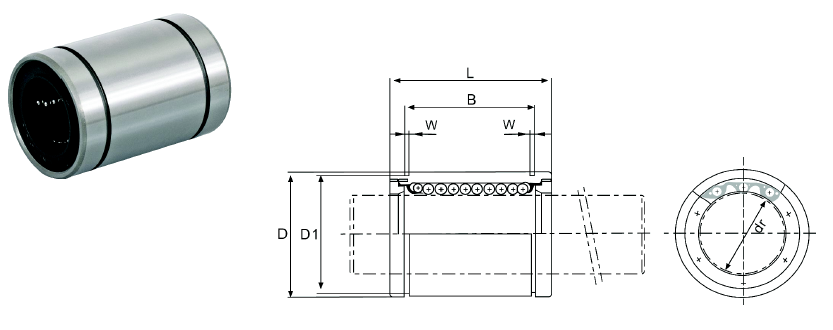

Bearing No.

Principal dimensions

Ball circuits

Basic load ratings

Weight



dr

D

L

B

W



dynamic(Cr)

static(Cor)

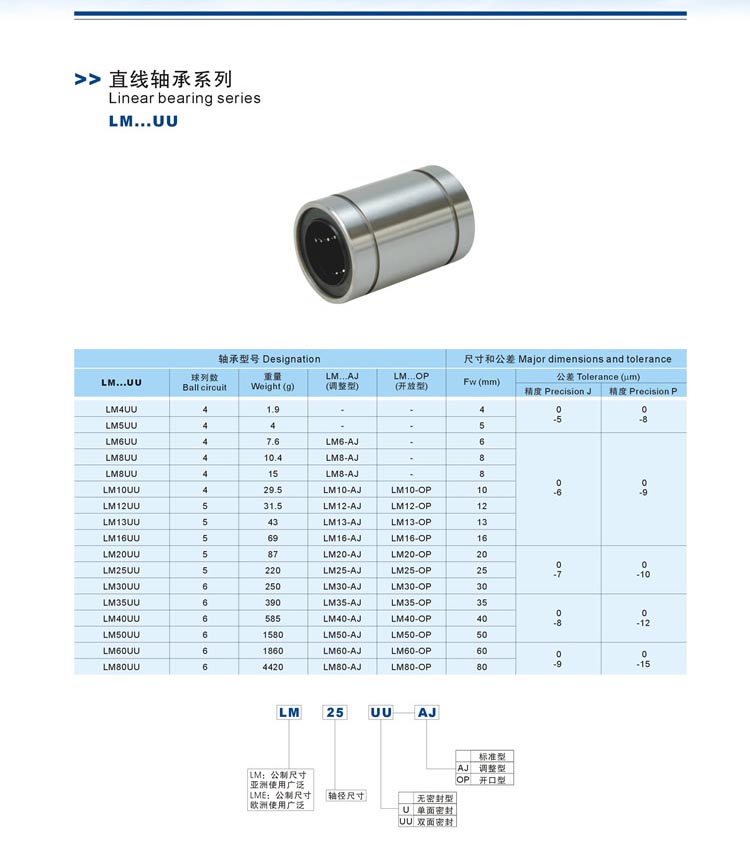

LM8 UU

8

15

24

17.5

1.1

4

27

41

16

LM10 UU

10

19

29

22

1.3

4

38

56

30

LM12 UU

12

21

30

23

1.3

4

42

61

32

LM13 UU

13

23

32

23

1.3

4

52

79

43

LM16 UU

16

28

37

26.5

1.6

5

79

120

69

LM20 UU

20

32

42

30.5

1.6

5

88

140

87

LM25 UU

25

40

59

41

1.85

6

100

160

220

LM30 UU

30

45

64

44.5

1.85

6

160

280

250

LM40 UU

40

60

80

60.5

2.1

6

220

410

585

LM50 UU

50

80

100

74

2.6

6

390

810

1580

LM60 UU

60

90

110

85

3.15

6

480

1020

2000

轴承型号

基本尺寸(mm)

列数

额定载荷(N)

重量(g)

Bearing No.

Principal dimensions

Ball circuits

Basic load ratings

Weight



dr

D

L

B

W



dynamic(Cr)

static(Cor)

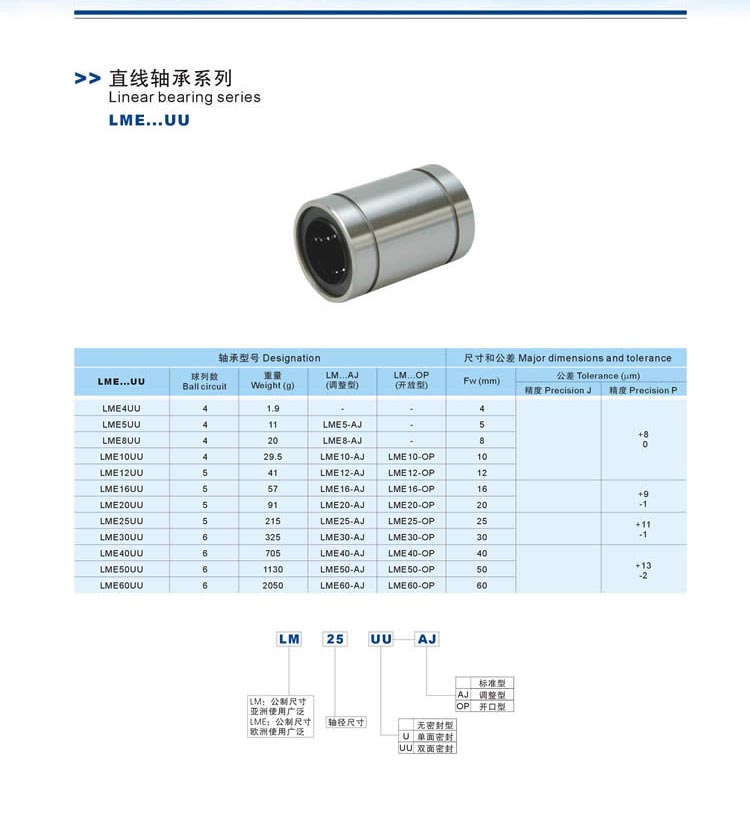

LME8 UU

8

16

25

16.5

1.1

4

27

41

20

LME12 UU

12

22

32

22.9

1.3

4

52

79

41

LME16 UU

16

26

36

24.9

1.3

5

59

91

65

LME20 UU

20

32

45

31.5

1.6

5

88

140

91

LME25 UU

25

40

58

44.1

1.85

6

100

160

215

LME30 UU

30

47

68

52.1

1.85

6

160

280

325

LME40 UU

40

62

80

60.6

2.15

6

220

410

705

LME50 UU

50

75

100

77.6

2.65

6

390

810

1130

LME60 UU

60

90

125

101.7

3.15

6

480

1020

2220
