（11Series）Single Row Crossed Roller Slewing Bearing

Single row crossed roller slewing bearing is composed of two seat rings, which design in compact structure and light weight, the clearance is small when assembly, so need high precision. Rollers are 1:1 cross arranged, it can bear the axial force, tilting moment and relatively large radial force. It is widely used for hoisting, transportation, construction machinery, and the military products.

Product Description

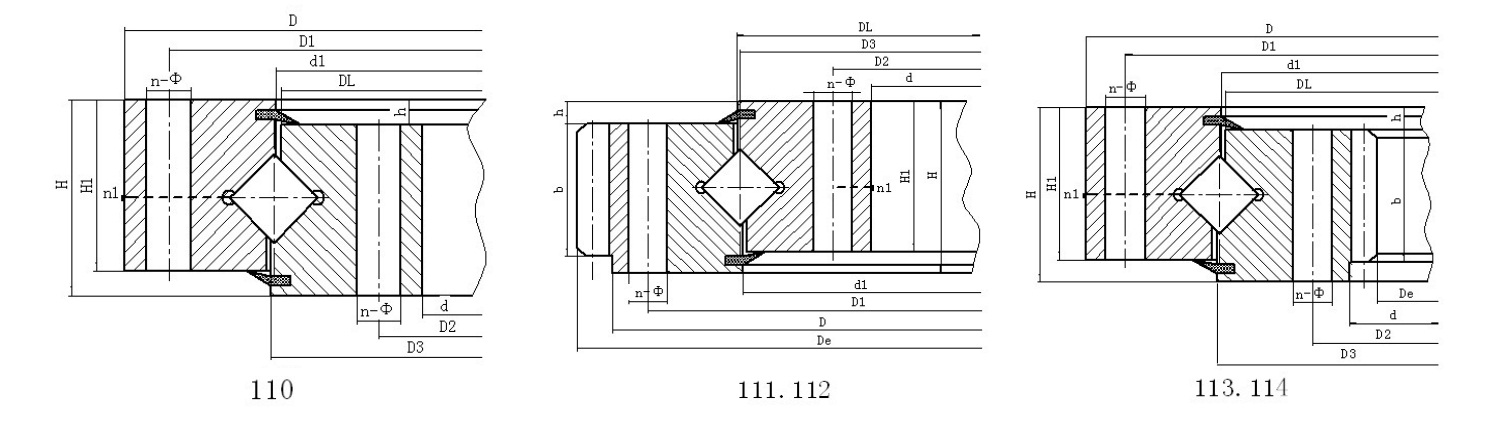

No	Non gear	Dimensions			Mounting Dimension						Structural Dimension					weight

	DL	D	d	H	D1	D2	n	mm	dm	L	n1	D3	d1	H1	h
	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	kg
1	110.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	80

2	110.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	90

3	110.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	100

4	110.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	110

5	110.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	170

6	110.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	190

7	110.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	210

8	110.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	230

9	110.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	350

10	110.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	400

11	110.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	440

12	110.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	500

13	110.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	900

14	110.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	1000

15	110.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	1100

16	110.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	1250

17	110.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	2150

18	110.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	2470

19	110.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	2800

20	110.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	3100

No	External gear	Dimensions			Mounting Dimension						Structural Dimension					Gear Data					weight
																		External gear
	DL	D	d	H	D1	D2	n	mm	dm	L	n1	D3	d1	H1	h	b	x	m	De	z
	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		kg
1	111.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	629	123	80
	112.25.500																	6	629	102
2	111.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	689	135	90
	112.25.560																	6	689	112
3	111.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	773	126	100
	112.25.630																	8	774	94
4	111.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	851	139	110
	112.25.710																	8	854	104
5	111.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	65	0.5	8	966	118	170
	112.28.800																	10	968	94
6	111.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	1062	130	190
	112.28.900																	10	1068	104
7	111.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	1188	116	210
	112.28.1000																	12	1186	96
8	111.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	1298	127	230
	112.28.1120																	12	1306	106
9	111.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1450	118	350
	112.32.1250																	14	1453	101
10	111.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1606	131	400
	112.32.1400																	14	1607	112
11	111.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1817	127	440
	112.32.1600																	16	1821	111
12	111.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	2013	141	500
	112.32.1800																	16	2013	123
13	111.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	90	0.5	16	2269	139	900
	112.40.2000																	18	2264	123
14	111.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	90	0.5	16	2493	153	1000
	112.40.2240																	18	2498	136
15	111.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	90	0.5	18	2768	151	1100
	112.40.2500																	20	2776	136
16	111.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	90	0.5	18	3074	168	1250
	112.40.2800																	20	3076	151
17	111.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	110	0.5	20	3476	171	2150
	112.50.3150																	22	3472	155
18	111.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	110	0.5	20	3876	191	2470
	112.50.3550																	22	3890	174
19	111.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	110	0.5	22	4330	194	2800
	112.50.4000																	25	4345	171
20	111.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	110	0.5	22	4836	217	3100
	112.50.4500																	25	4845	191

No	Internal gear	Dimensions			Mounting Dimension						Structural Dimension					Gear Data					weight
																		Internal gear
	DL	D	d	H	D1	D2	n	mm	dm	L	n1	D3	d1	H1	h	b	x	m	De	z
	mm	mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		kg
1	113.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	367	74	80
	114.25.500																	6	368	62
2	113.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	427	86	90
	114.25.560																	6	428	72
3	113.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	494	83	100
	114.25.630																	8	491	62
4	113.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	572	96	110
	114.25.710																	8	571	72
5	113.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	65	0.5	8	635	80	170
	114.28.800																	10	634	64
6	113.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	739	93	190
	114.28.900																	10	734	74
7	113.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	824	83	210
	114.28.1000																	12	821	69
8	113.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	944	95	230
	114.28.1120																	12	941	79
9	113.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1049	88	350
	114.32.1250																	14	1042	75
10	113.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1193	100	400
	114.32.1400																	14	1196	86
11	113.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1392	100	440
	114.32.1600																	16	1382	87
12	113.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	1574	113	500
	114.32.1800																	16	1574	99
13	113.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	90	0.5	16	1734	109	900
	114.40.2000																	18	1735	97
14	113.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	90	0.5	16	1990	125	1000
	114.40.2240																	18	1987	111
15	113.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	90	0.5	18	2239	125	1100
	114.40.2500																	20	2228	112
16	113.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	90	0.5	18	2527	141	1250
	114.40.2800																	20	2528	127
17	113.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	110	0.5	20	2828	142	2150
	114.50.3150																	22	2825	129
18	113.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	110	0.5	20	3228	162	2470
	114.50.3550																	22	3221	147
19	113.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	110	0.5	22	3661	167	2800
	114.50.4000																	25	3660	147
20	113.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	110	0.5	22	4167	190	3100
	114.50.4500																	25	4160	167
