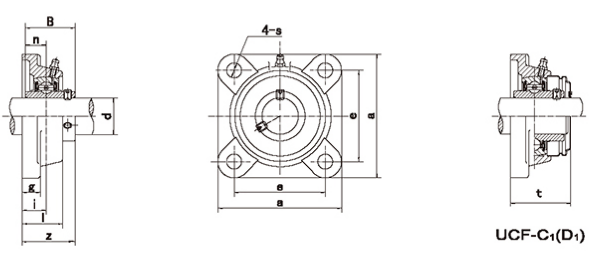

型号 |
基本尺寸(mm) |
重量(kg) |
||||||||||
|
Tpye |
Principal dimensions |
Weight |
||||||||||
|
|
d |
a |
e |
i |
g |
l |
s |
t |
z |
B |
n |
|
|
UCF201 |
12 |
86 |
64 |
15 |
12 |
25.5 |
12 |
33.3 |
37.5 |
31 |
12.7 |
0.59 |
|
UCF202 |
15 |
86 |
64 |
15 |
12 |
25.5 |
12 |
33.3 |
37.5 |
31 |
12.7 |
0.58 |
|
UCF203 |
17 |
86 |
64 |
15 |
12 |
25.5 |
12 |
33.3 |
37.5 |
31 |
12.7 |
0.57 |
|
UCF204 |
20 |
86 |
64 |
15 |
12 |
25.5 |
12 |
33.3 |
37.5 |
31 |
12.7 |
0.55 |
|
UCF205 |
25 |
95 |
70 |
16 |
14 |
27 |
12 |
35.8 |
40 |
34.1 |
14.3 |
0.73 |
|
UCF206 |
30 |
108 |
83 |
18 |
14 |
31 |
12 |
40.2 |
44.5 |
38.1 |
15.9 |
1.02 |
|
UCF207 |
35 |
117 |
92 |
19 |
16 |
34 |
14 |
44.4 |
48.5 |
42.9 |
17.5 |
1.33 |
|
UCF208 |
40 |
130 |
102 |
21 |
16 |
36 |
16 |
51.2 |
55.5 |
49.2 |
19 |
1.67 |
|
UCF209 |
45 |
137 |
105 |
22 |
18 |
38 |
16 |
52.2 |
56.5 |
49.2 |
19 |
2 |
|
UCF210 |
50 |
143 |
111 |
22 |
18 |
40 |
16 |
54.6 |
59.5 |
51.6 |
19 |
2.32 |
|
UCF211 |
55 |
162 |
130 |
25 |
20 |
43 |
19 |
58.4 |
63 |
55.6 |
22.2 |
3.12 |
|
UCF212 |
60 |
175 |
143 |
29 |
20 |
48 |
19 |
68.7 |
73.5 |
65.1 |
25.4 |
3.95 |
|
UCF213 |
65 |
187 |
149 |
30 |
22 |
50 |
19 |
69.7 |
74.5 |
65.1 |
25.4 |
4.81 |
|
UCF214 |
70 |
193 |
152 |
31 |
22 |
54 |
19 |
75.4 |
81.5 |
74.6 |
30.2 |
5.42 |
|
UCF215 |
75 |
200 |
159 |
34 |
22 |
56 |
19 |
78.5 |
83.5 |
77.8 |
33.3 |
5.94 |
|
UCF216 |
80 |
208 |
165 |
34 |
22 |
58 |
23 |
83.3 |
88.5 |
82.6 |
33.3 |
6.94 |
